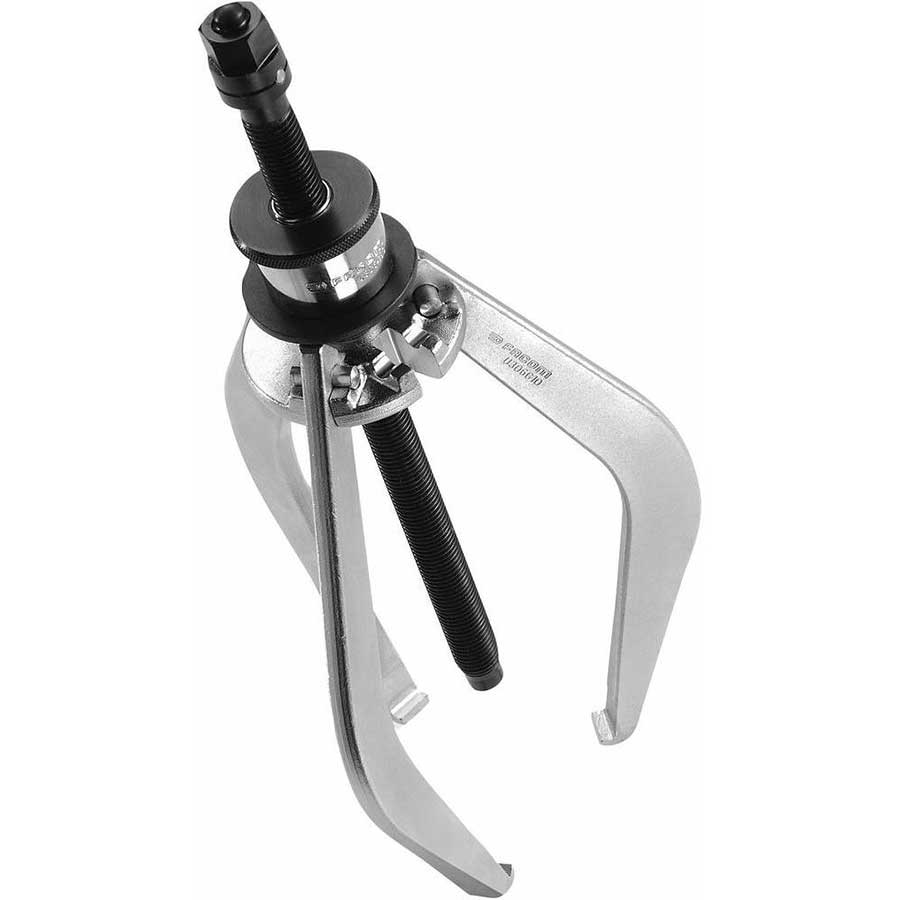

- Versatile: takes 2 or 3 legs. Converts into inside puller with thel egs U.306G2 + screw U.306-4 or legs U.306G20 + screw U.306-2.
- Comfort : self-gripping legs by return spring. The puller stays inrolling posit ion even when not in tension.
-
Safety: legs locked inposition on the bearing using a knob. No risk for the puller to escapefrom the beari ng.
- Shear pin: the pin shears if torque lim it isexceeded. Supplied with 2 spare pins.
- Set of 3 spare pins. Re fer to spares table accor ding
to puller power.
- Adaptable pulleraccessories: slide hamm er U.306M (direct attachment) and beam U.40(attached using ring and nut U.306A1 to be ordered separately).
- The U.306-260 puller is supp lied with the U.306-3 screw fitted wi th
itsextension.
|
- Versatile
- Easy to use
- Easy leg change
|
- C mini - maxi : 50-170 mm
- Dimension (LxlxH) : 135 x 285 x 320m m
- Puller length (P maxi): 200 mm
- Puller Force (T) : 40 kN
- Legs : U.306G10
- Screw Size : U.306-2
- Hex size : 18 mm
- Ton : 4 tons
- Screw size : 18mm
-
Weight : 2.2 kg.
|
-
