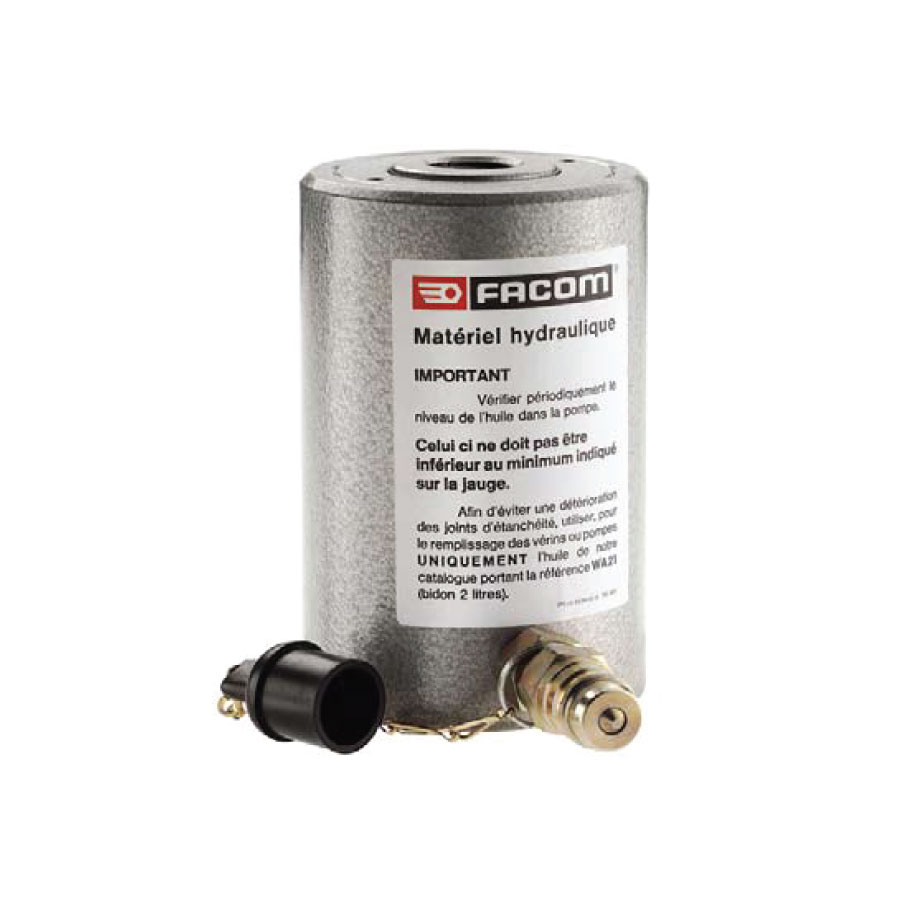

- These jacks are intended for hydraulic pullers U.320H and U.330H in replacement or option on manual pullers U.320 and U.330 using special sc rews UWG.320H01 and UWG.330H01.
- They are fitted with through taps re ceiving a central screw to work in
pushing or traction.
- Jacks act ivated with 700-bar pump UWP.10M.
- The use in jack function is poss ible.
|
- Simple and Guaranteed safe
|
- d [mm] 115
- d1 [mm] 29,0
- H [mm] 177
- T [kN] 300
- Sc rew Siz e UWG.330H01
- Oil Capacity [cm³] 257,4
- Organizer for Box
- Ton [t] 30
- Screw Size [mm] 24
- [kg] 10,200
|
-
