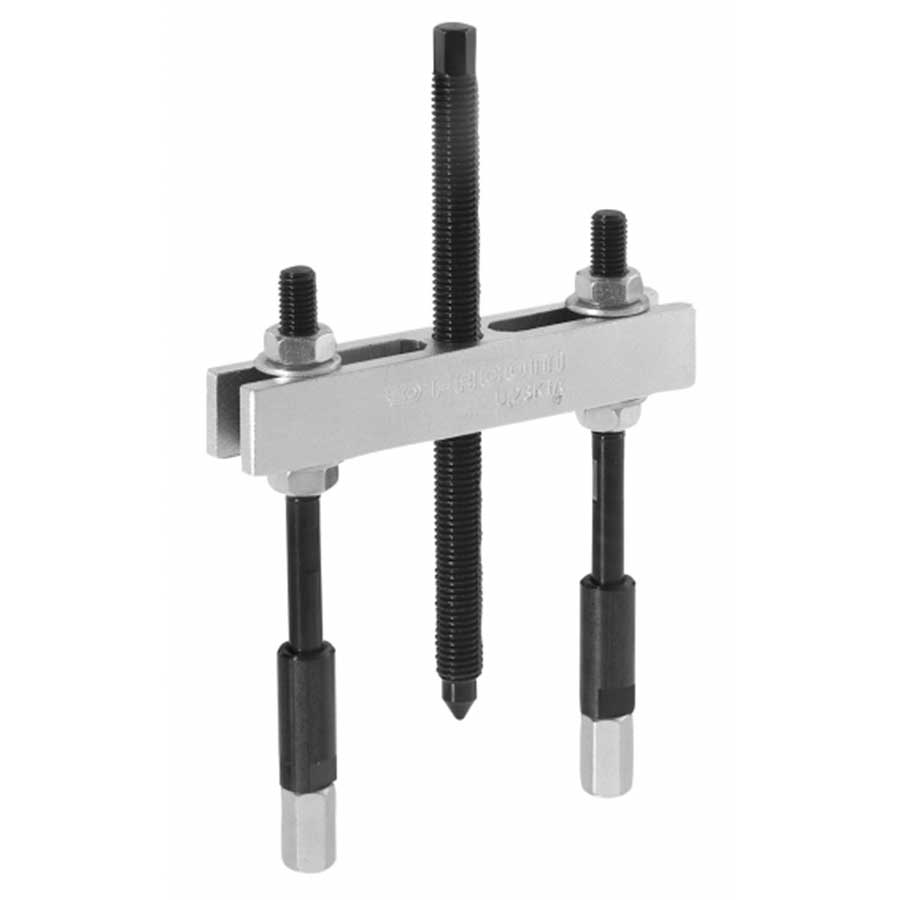

- Tapped beams are used in mechanical pulling with separators, spheri cal or threaded tips.
- Spread: dia. 25 to 400 mm.
|
|
- C mini - maxi [mm] 25 - 95
- d [mm] M10
- d1 [mm] 8
- L [m m] 110
- L1 [mm] 155
- L2 [mm] 20
- L3 [mm] 20
- Wi dth l [mm] 105
- P [mm] 100
- P maxi [mm] 100
- T [kN] 10
- Screw Size U.2 3K1A-02
- Hex Size [mm] 8
- Tie-rods
U.23K1A- 03
- Ton [t] 1
|
|
-
|
