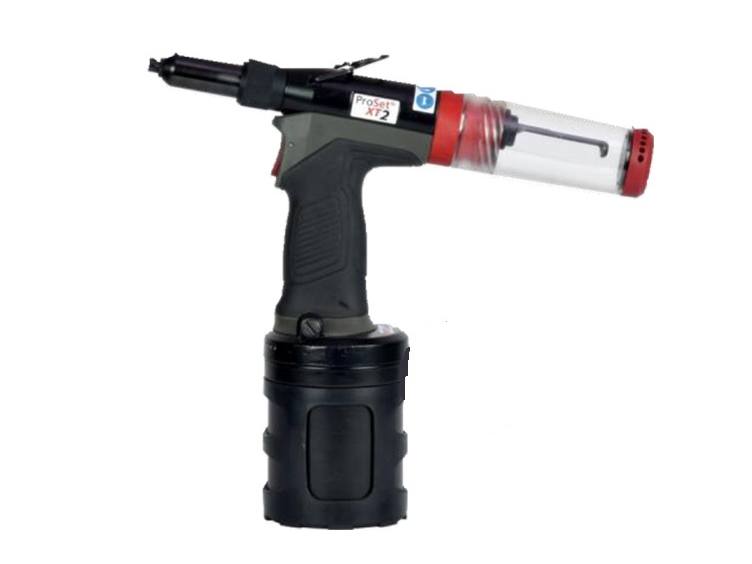

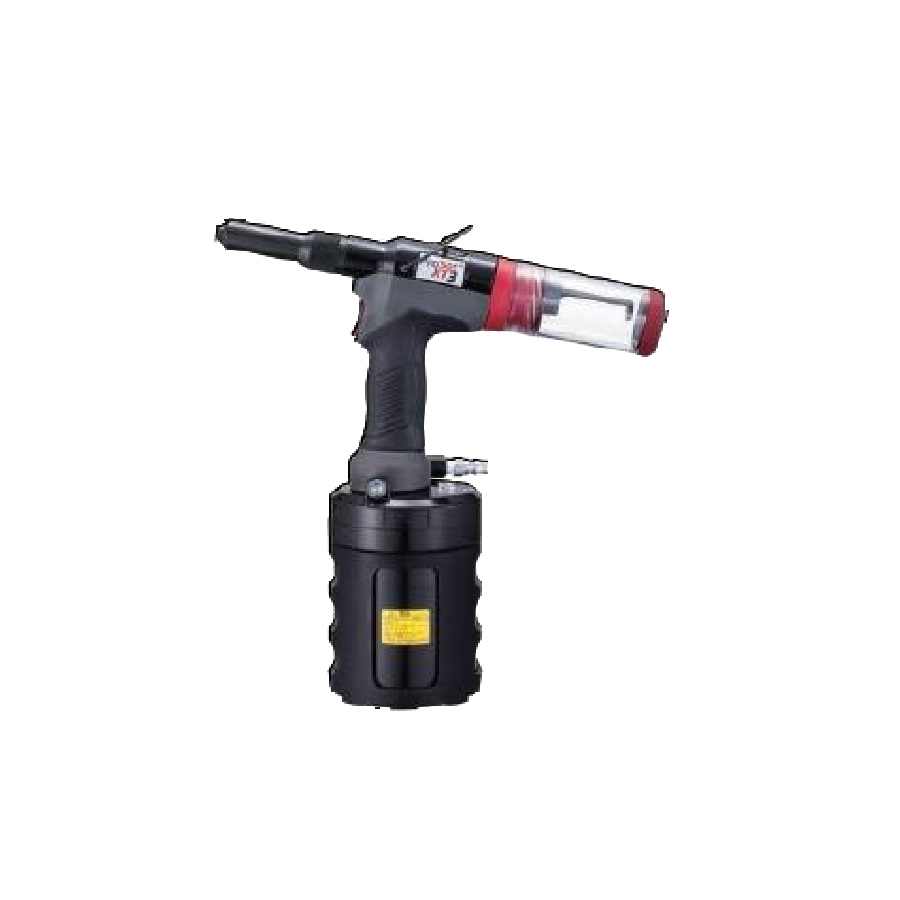

76002-00001 - The ProSet XT2 tool sets new standards for pneumatic rivet tools. Designed specifi cally to set a wide range of breakstem rivets, this tool delivers 8.9 kN of pull force with an outstanding force-to-wei ght ratio of 7.18 kN/kg. Therobust tool |
- Performance
- High force-to-weight ratio
- Quick disconnect nose h ousing and jaw case for easy maintenance and service
- Clear quick rele ase mandrel collector bottle reduces downtime
- Integral exhaust valves for fast setting cycles
- Ergonomic
- Class leading lightweig ht co nstruction with balanced handling
- Comfortable, low activation force t rigger
- Adjustable vacuum exhaust direction
- Economy & Safety
- Air isolation switch during MCS removal
- On/Off, left or right swivel air
fitting provides flexibility and conserves energy
|
- Weight, incl. nose equipment = 1.26 kg
- Weight, without nose equip ment = 1.15 kg
- Pull force at 5.5 bar = 8.9 kN
- Force/Weight ratio = 7.06 kN/kg
- Stroke (min.) = 20 mm
- Cycle time (approximate) = 0.6 s ec
- Air supply pressure (dry,fi ltere
|
-
