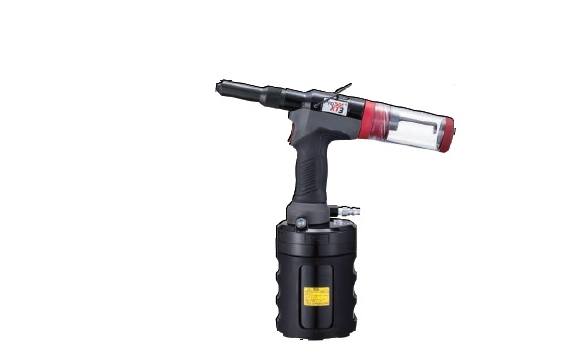

76003-00001 - The ProSet XT3 can be used in a variety of applications, s etting a large range of breakstem rivets, lockbolts and sealing plug siz es. The extremely large stroke of 26 mm allows the placement of longer r ivets like Monobolt andInterlock in one |
- Performance
- High force-to-weight ratio
- Quick disconnect nose h ousing and jaw case for easy maintenance and service
- Clear quick rele ase mandrel collector bottle reduces downtime
- Integral exhaust valves for fast setting cycles
- Ergonomic
- Class-leading lightweig ht co nstruction with balanced handling
- Comfortable, low activation force t rigger
- Adjustable vacuum exhaust direction
- Economy & Safety
- Air isolation switch during MCS removal
- On/Off, left or right swivel air
fitting provides flexibility and conserves energy
|
- Weight, incl. nose equipment = 2.14 kg
- Weight, without nose equip ment = 2.0 kg
- Pull force at 5.5 bar = 17.0 kN
- Force/Weight ratio = 7.94 kN/kg
- Stroke (min.) = 26 mm
- Cycle time (approximate) = 0.9 s ec
- Air supply pressure (dry,fi ltere
|
-
