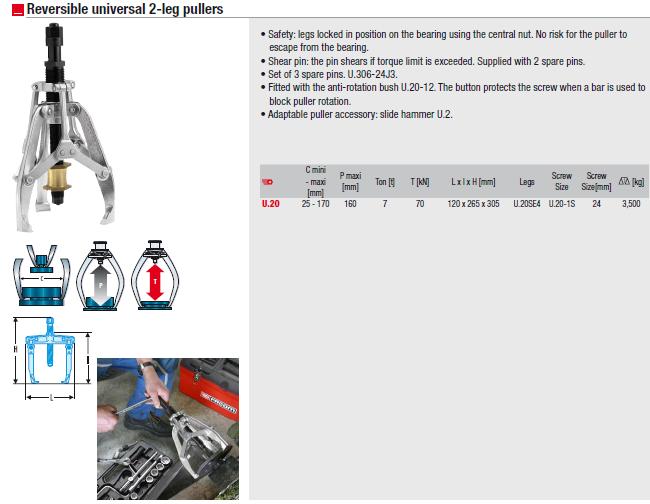

- Safety: legs locked in position on the bearing using the central nut . No risk for the puller to escape from the bearing.
- Shear pin: the pin shears if torque limit is exceeded. Supplied with 2 spare pins.
- Set of 3 spare pins. U.306-24J3.
-
Fitted with the anti-rotation b ush U.20-12. The button protects the screw when a bar is used to block p uller rotation.
- Adaptable puller accessory: slide hammer U.2.
|
|
- C mini - maxi [mm] 25 - 170
- L x l x H [mm] 120 x 265 x 305
- P maxi [mm] 160
- T [kN] 70
- Legs U.20SE4
- Screw Size U.20-1S
- Hex Size [mm] 24
- Ton [t] 7
- Screw Size [mm] 24
- [kg] 3,5 00
|
-
