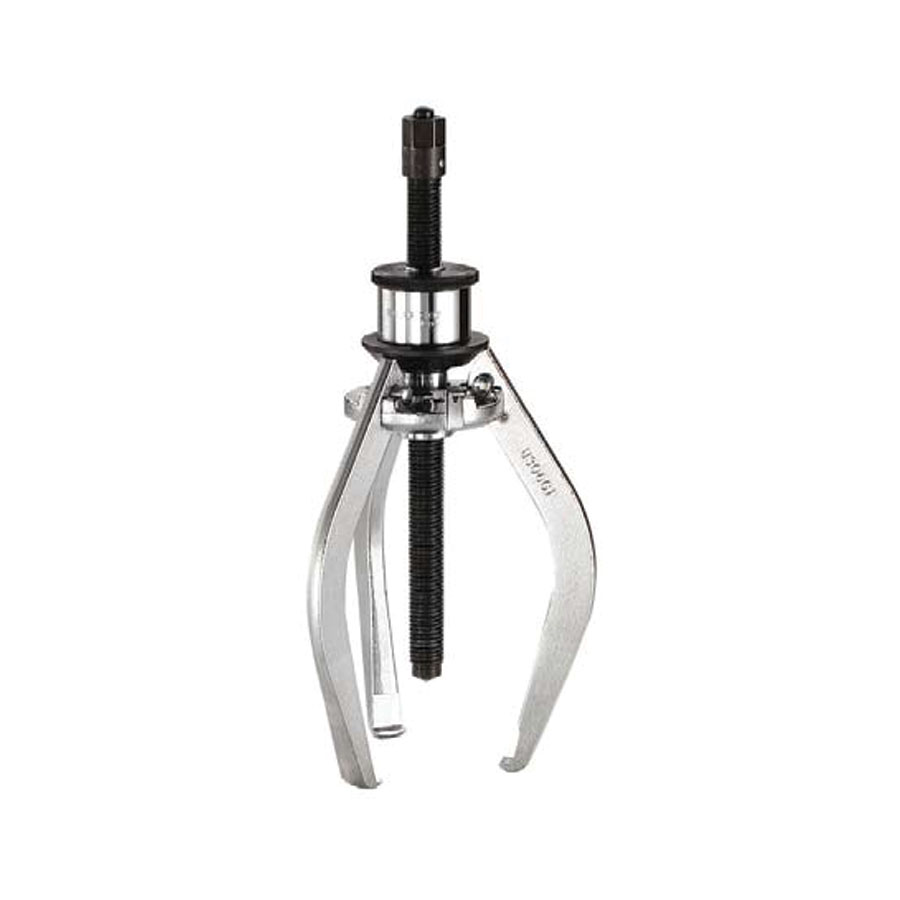

- Versatile: takes 2 or 3 legs. Converts into inside puller with the legs U.306G2 + screw U.306-4 or legs U.306G20 + screw U.306-2.
- Comf ort: self-gripping legs by return spring. The puller stays in rolling p osition even when not in tension.
-
Safety: legs locked in positio n on the bearing using a knob. No risk for the puller to escape from t he bearing.
- Shear pin: the pin shears if torque limit is exceeded . Supplied with 2 spare pins.
- Set of 3 spare pins. Refe r to spares table
according to puller power.
- Adaptable puller accessories : slide hammer U.306M (direct attachment) and beam U.40 (attached u sing ring and nut U.306A1 to be ordered separately). The U.306-260 puller is supplied with the U.306-3 screw fitted
with i ts extensio n.
|
|
- Capacity (Mini - Maxi.): 20-260 mm
- Pull Maximum: 250 mm
- F orce: 40 kN
- Ton: 4 Ton
- Legs: U.306G15
- Screw size: U.306-3
- Hex size: 18 mm
|
-
