- EN Designation:
Designation and shape of the tool - 1 = Grinding wheel, fl at type
- 6 = Cylindrical cup wheels
- 11 = C u p wheel, tapered type
- 27 = Grinding wheel, depressed centre type
- 29 = Semi-fl exible grinding wheel,
depressed centre type
Abrasive - A = Aluminium oxide
- AC = Aluminium oxid e/silicon carbide
- C = Silicon carbide
- C O = Ceramic grit
- Z = Zirconia alumina
- ZA = Zirconia alumina/al uminium oxide
Grit size - Grit size acc. to ISO 8486
< br/> Hardness grade (wheel properties) - Very soft: K, H Soft: L, M, N
- Medium-Hard: P, O, Q
- Hard: R, S
- Very hard: T
Bond - BF = Resinoi d bond,
fi bre- reinforced, woven or non-woven
- B = Resin oid bond and other du roplastic bonds
Max. operating speed in (m/s)
|

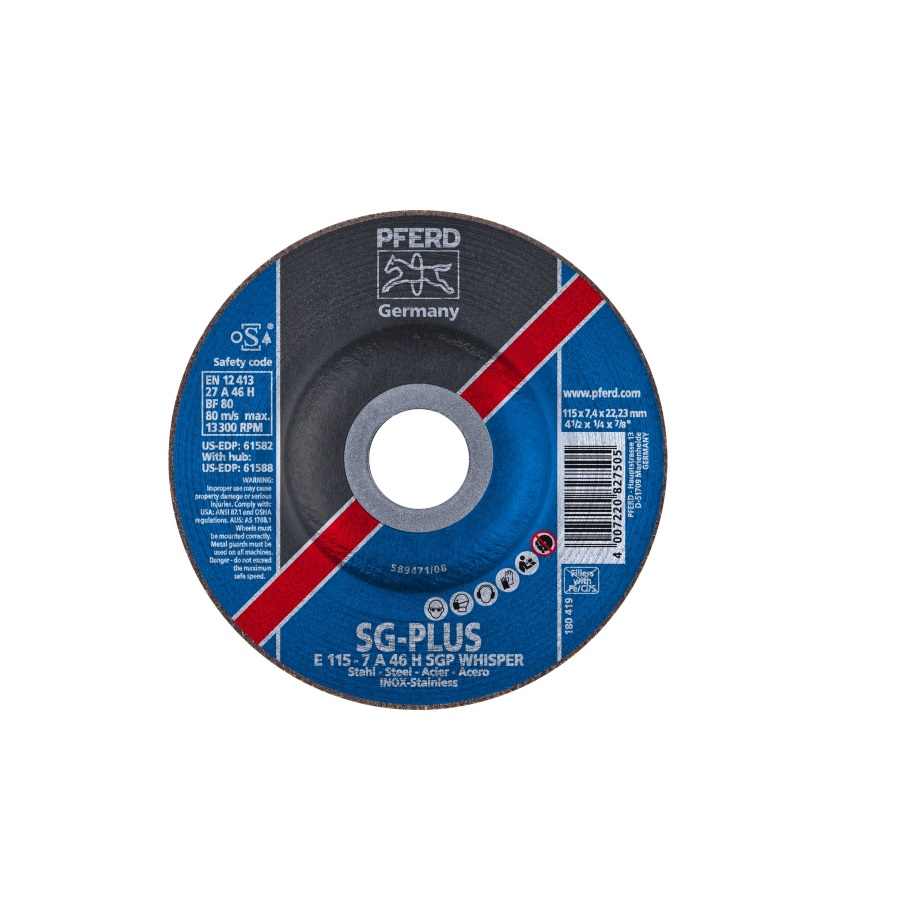

- Very soft high-performance tool of hardness H.
- Very suitable whe n high stock removal and excellent surface qualities need to be achieved economically.
- Abrasive: Aluminium oxide A
- Materials to be worke d: Stainless steel (INOX), steel
-
Applications: Surface grinding ,work on weld seams, fillet weld grinding
|
- Diameter: 115 mm
- Thickness: 7.4 mm
- Hole: 22.23 mm
- Max spee d: 13300 Rpm
- EN designation: 27 A 46 H BF 80
- Grit size: 46
|
-
