- Ergonomical and slim design
|
- High Durability
- Easy To Use
|
- 32 Kg
- Easy installation

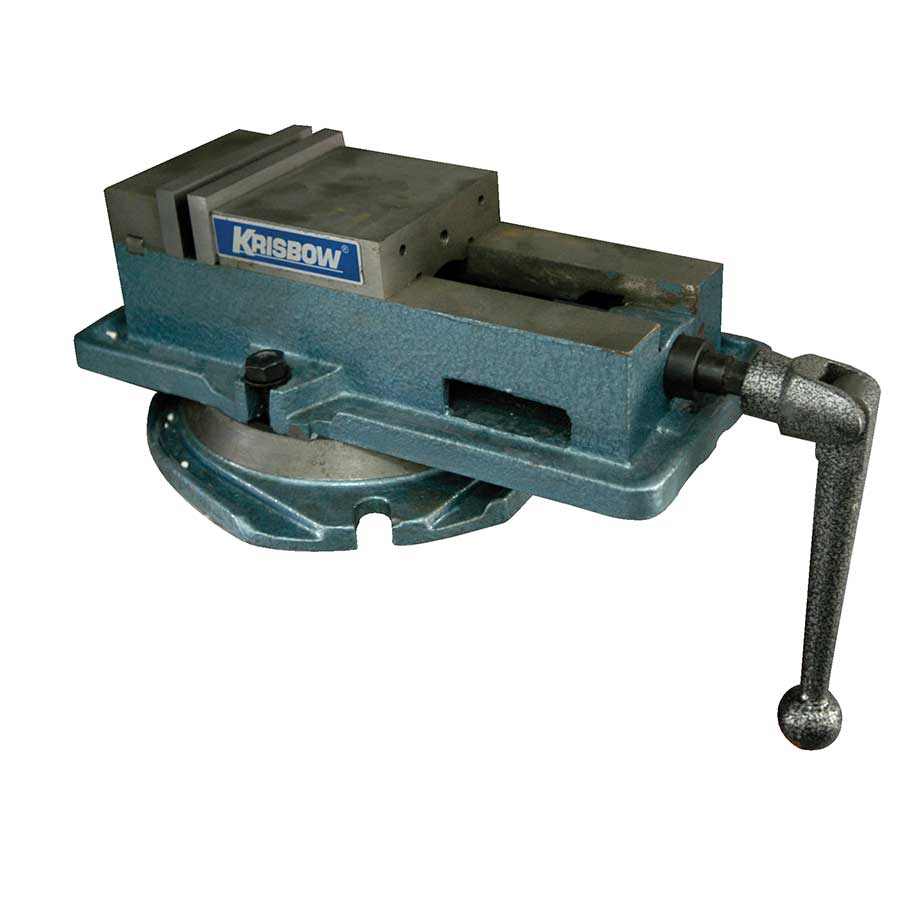

- It is one of main attachments for mill ing, drilling machine, it is particularly suitable for the finishing of the precision parts
- The accuracy of vise (paralelism and squareness) is 0.025/100mm
- The special segment
the moveable jaw forces the ver tical pressure downward when the horizontal pressure works, so that this jaw does not lift the workpiece
- Four positions allow extra capacity to change opening of jaw
- As the thrust component of the screw is equ ipped
with thrust needle bearing it can be easily opereted
- Width of Jaw (mm): 160
- Height of Jaw (mm): 45
- Max. opening (mm): 170
- 47 X 30 X 15 CM
|
-
