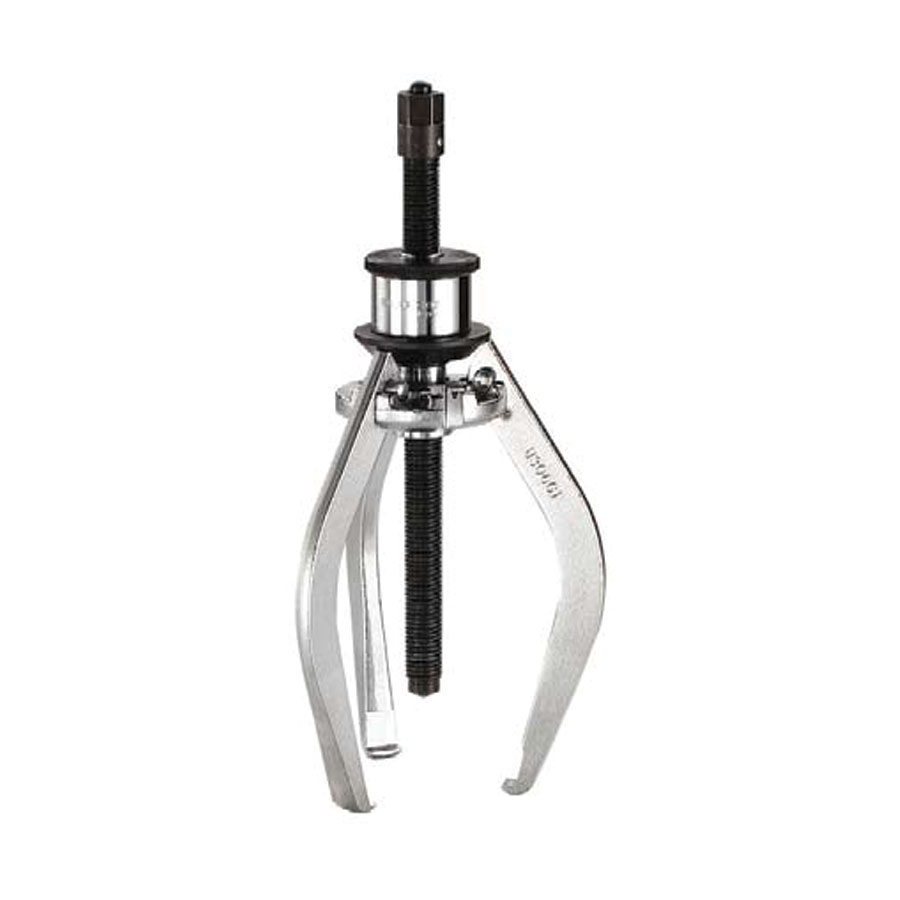

- Versatile: takes 2 or 3 legs. Converts into inside puller with the l egs U.306G2 + screw U.306-4 or legs U.306G20 + screw U.306-2.
- Comfort : self-gripping legs by return spring. The puller stays in rolling posi tion even when not in tension.
-
Safety: legs locked in position on the bearing using a knob. No risk for the puller to escape from the b earing.
- Shear pin: the pin shears if torque limit is exceeded. Sup plied with 2 spare pins.
- Set of 3 spare pi ns. Refer to spares table
according to puller power.
- Adaptable pull er accessories: slide h ammer U.306M (direct attachment) and beam U.40 (attached using ring and nut U.306A1 to be ordered separately).The U.306-260 puller is supplied with the U.306-3 screw fitted
with it s extension.
|
|
- C mini - maxi [mm] 7 - 140
- L x l x H [mm] 130 x 225 x 262
- P m axi [mm] 147
- T [kN] 30
- Legs U.306G1
- Screw Size U.306-4
- Hex Size [mm] 18
- Ton [t] 3
- Screw Size [mm] 18
- [kg] 1,60 0
|
-
