- Bezel clamp and lifting lever (optional) can be attached to either right or left side. They can be easily installed and removed without too ls
- No through screw holes on the frame as well as the use of an O-r ing prevents water or oil penetration
|

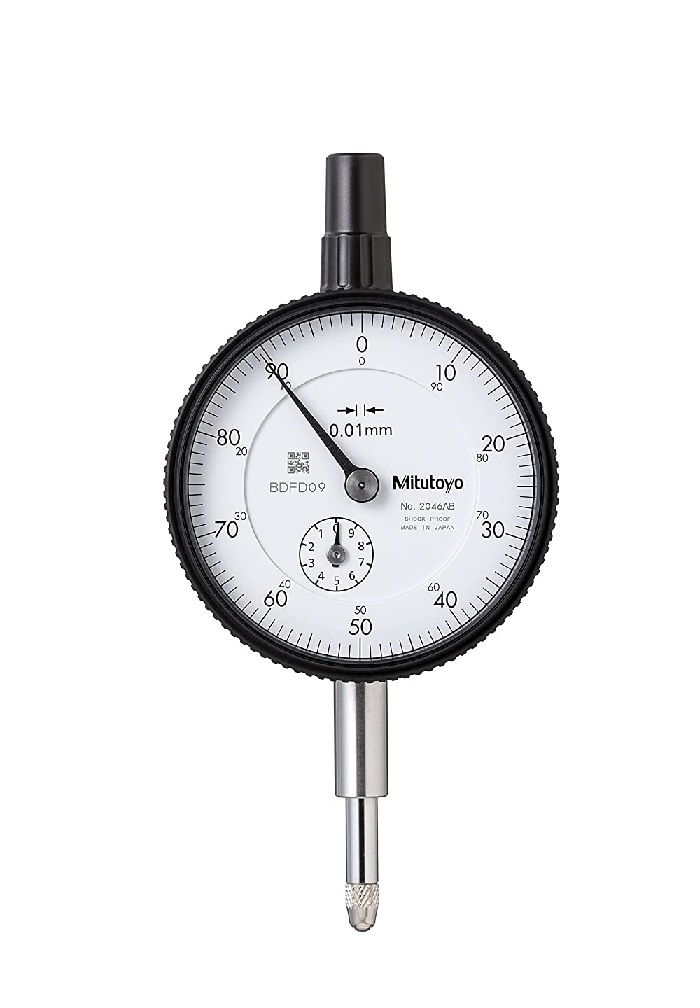

This is a standard dial indicator |
- Range: 10 mm
- Range per rev.: 1 mm
- Graduation: 0.01 mm
- Scale: 0-100 (100-0)
- MPE any 1/10 revolution: 5 um
- MPE measu ring range: 13 um
- H MPE (Hysteresis): 3 um
- R MPE (Repeatabilit y): 3 um
- Measuring force: 0,4-1,4
|
|
-
|
