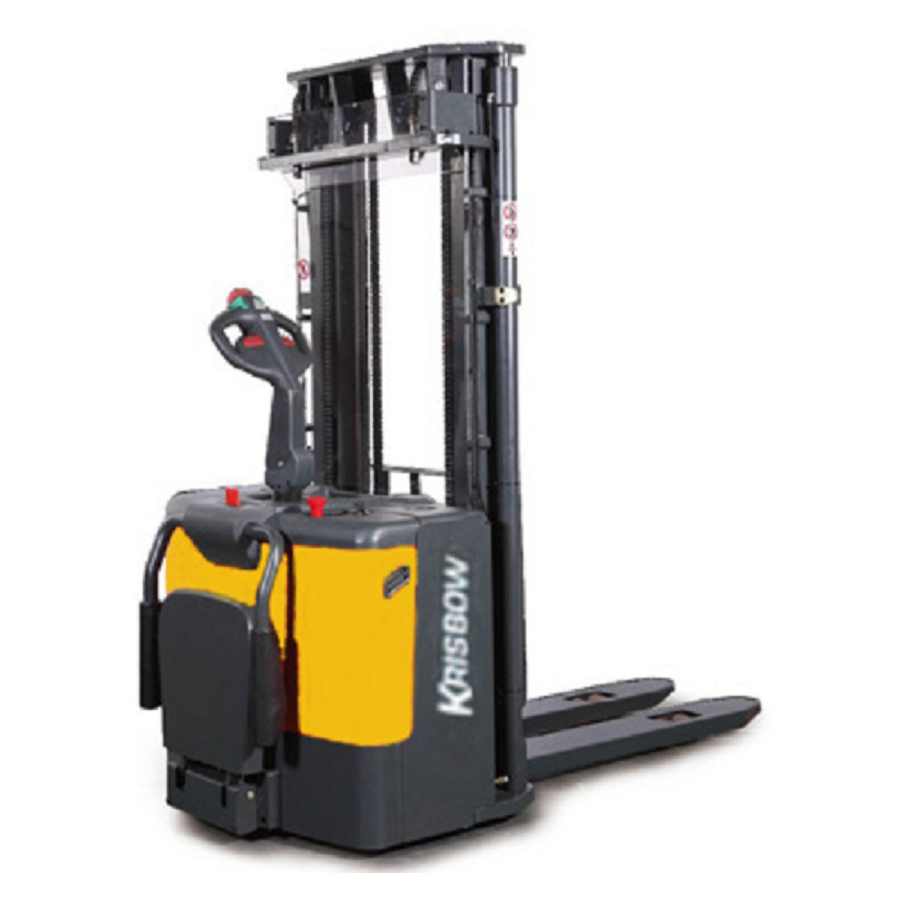

Powerfull high quality AC drive unit EPS-electric steering syste m. High performance 3PzS (4PzS) DIN-standard battery cells for long operations. EPS – electric steering system Robust and erg onomic design with various storage
areas. Foldable platform with p rotective arms. Wide view mast design |
Ergonomis CAN-BUS triller for both left-handed and right handed oper ation Diverse storage areas for stretch folls, documents or clipboar ds, etc High performance 3PzS (4PzS) DIN standar battery cells for l ong operation Foldable platform wit |
Power (battery) : Electric Operator type : Stand on Capacity (kg) : 1500 Load Center (mm) : 600 Lifting Height (mm) : 4515 < Ii>Fork Length (mm) : 1150 Fork Width (mm) : 570 Minimum Turning Radius (mm) : 1550 Aisle width for
pallet 1000X1200(mm) : 2400 Drive Motor (V/Kw) : 24/1.3 Lift Motor (V/Kw) : 24/3.0 Battery (V/Ah) : 24/210 Charger (V/Ah) : 24/45 Overall Length (mm) : 18 95 Overall Width (mm) : 1050 Overall Height mm) : 2102 Wheel :
Polyurethane |
-
Warranty Part: 06 Month(s)
-
Services: 12 Month(s)
|
