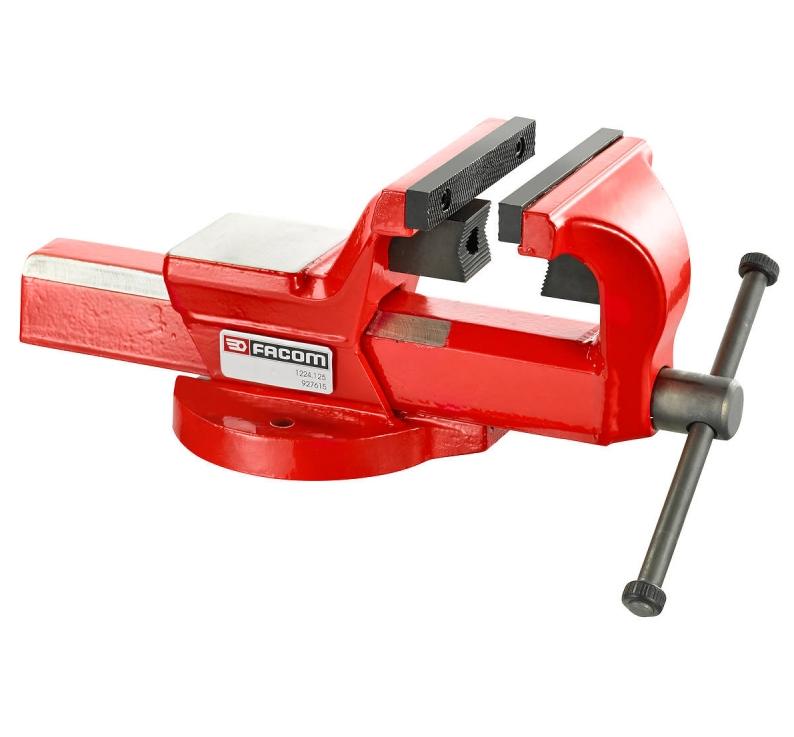

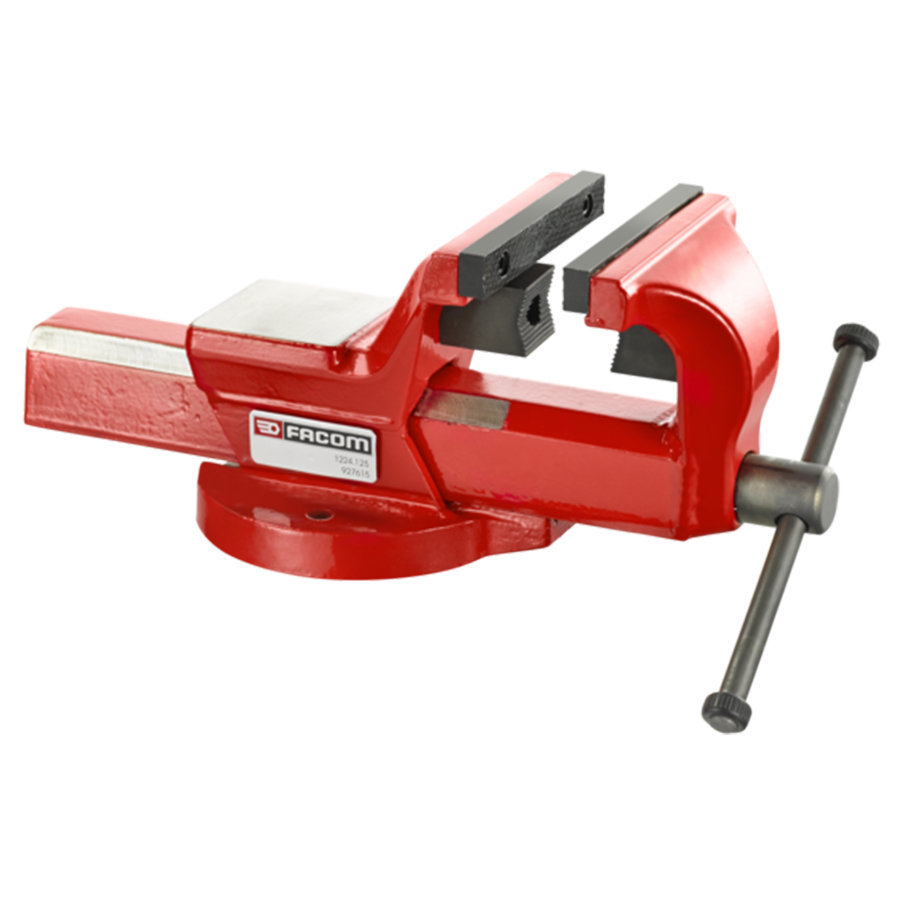

- Vices in spheroid graphite cast iron, tensile strength 700 N/mm2 mi nimum.
- Wide bearing base of the prism guide/mobile jaw: lack of gui de flexion, vice operation preserved even under heavy loads.
- Interc hangeable parallel jaws. High wear
resistance, hardness 48/53 HRc.
- Removable V-shaped jaws for tightening the pipes. Hardness 40/46 HRc.
- Adjustment system by 2 complex gap compensation screws.
- Burnis hed control bar.
|
- Simple, strong and durable
|
- A maxi [mm] 235
- B [mm] 118
- H [mm] 216
- H1 [mm] 123 L [mm] 532
- L1 [mm] 178
- L2 [mm] 68
- L3 [mm] 111
|
-
Warranty Part: 12 Month(s)
-
Services: 12 Month(s)
|
