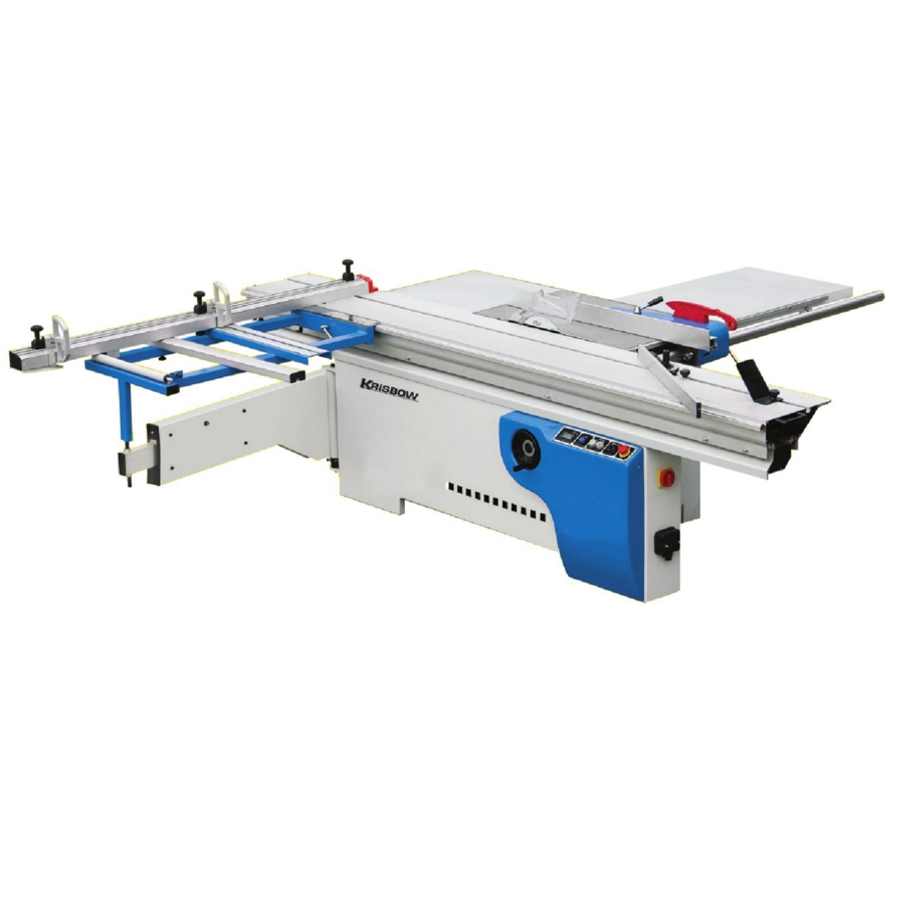

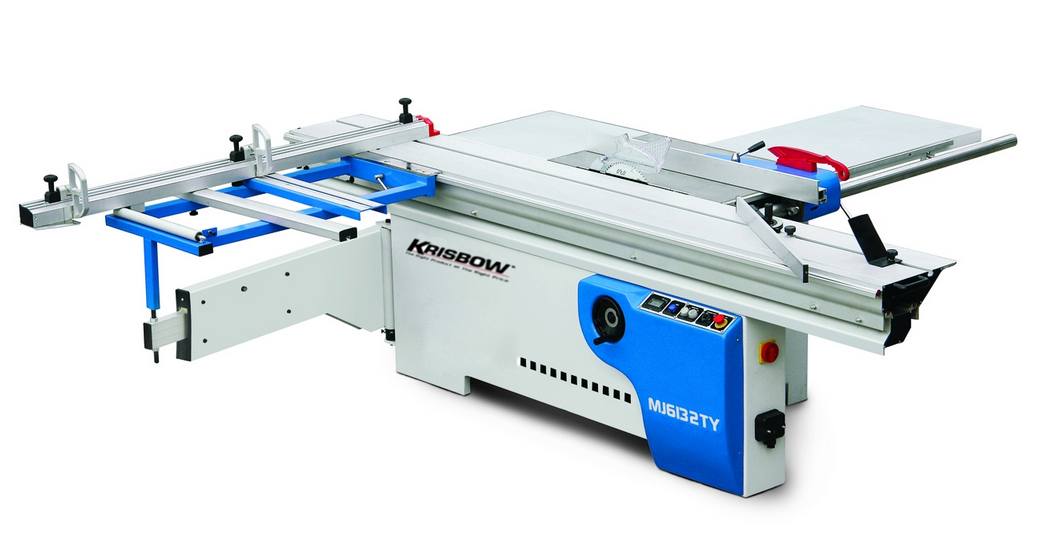

- High precision sliding table guide rail which is made from high stre ngth extruded alumunium alloy with characteristic without deformation Scoring saw included
- Tilting blade
|
- Precision and perfect cutting
- Heavy duty unit used for all kind s of MDF chipboard
- ABS board
- PVC board
- solid wood and woo d with similar hardness
|
- Motor Power : 380 V / 50 Hz / 3 PH / 4 KW
- Motor Power (Scoring) : 220 V/ 50 Hz/ 1 PH/ 0.75 KW
- Circular Saw Size : Dia 300 mm Circular Saw Bore : Dia 30 mm
- Circular Saw Speed : 6000 rpm
- Sc oring Saw Size : 120 mm
- Scoring Saw
Bore : 20 mm
- Scoring Saw Speed : 8000 rpm
- Max Thickness workpiece 90 Deg : 95 mm
- Max Thi ckness workpiece 45 Deg : 55 mm
- Sliding Table Size : 3200 mm
- Blade Tilt : 90 Deg - 45 Deg
|
-
Warranty Part: 03 Month(s)
-
Services: 06 Month(s)
|
