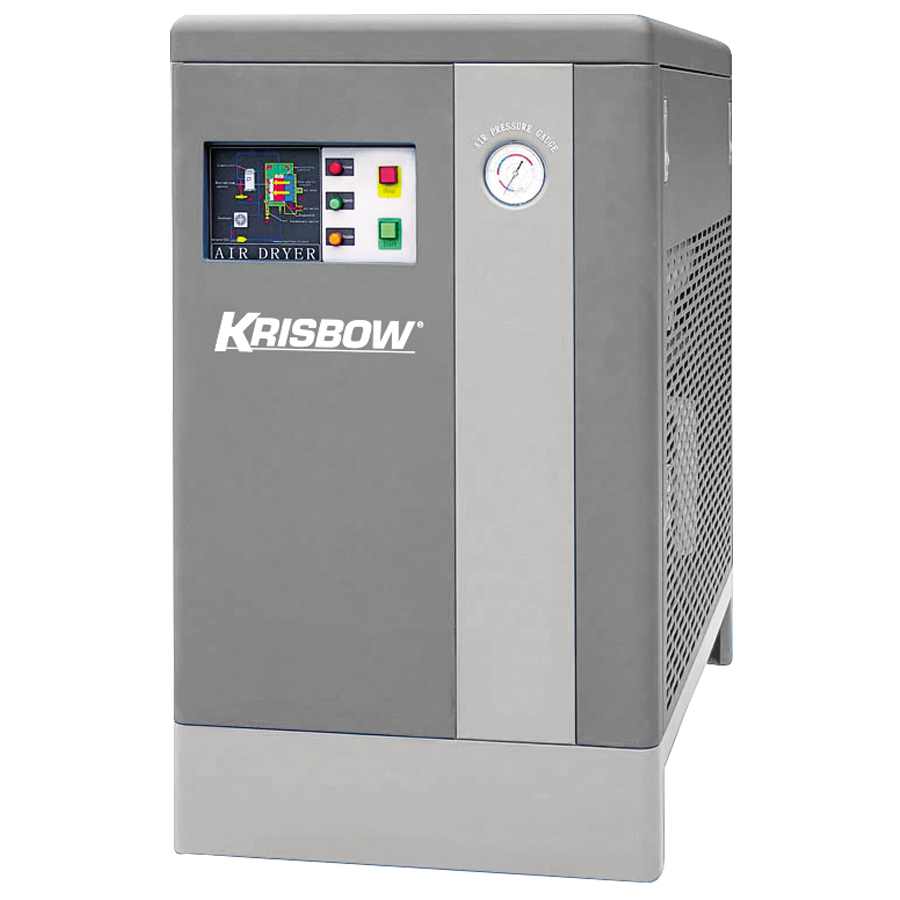

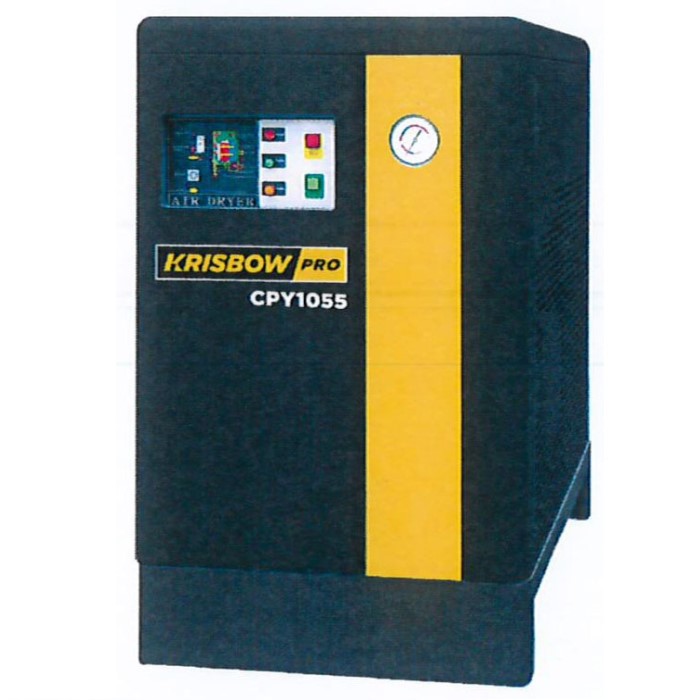

- Excellent Properties of KRISBOW Series of Dryers :
- High temper ature in the inlet:The post cooler and precooler can allow air below 80C to enter.
- High capacity of freezing:It is equipped with large hors e power refrigerant compressor that can
make fully cooling before refr igerating ,the wind quantity of which is larger by 30% tha n the product s of the kind .In addition ,the temperature of the dew po int is steady ,which will make 99% vapor change into dew drops.
- Excellent drainag e:The
efficiency of the supper centrifugal and current-collecting doub le water separator prevails over99%.
- High quality: The world famous high quality parts and fittings with lo ng life-span are adopted.
- Nice appearance and easy application : No
consumables, full-automatic drainage and manual drainage make a low working cost .The continuous wor king is reliable.
|
|
- Processing Air Volume Liter/min / CFM : 1500 / 53
- Meet to Air Compressor for HP : 10
- Limit of Utilization Conditions :
- Inlet temperature 80 deg.C
- Ambient temperature 45 deg.C
- Air pressu r e 1.0 Mpa (10bar)
- Pressure Dew-
point : 2 - 5 deg.C (equal to ai r dew-point 20 deg.C)
- Refrigerant : R134
- Power : AC220V/50Hz 1P hase
- Refrigerant Compressor Motor HP : 1/2
- Diameter of Air Ent ry and Exit Tube : 1IN
|
-
Warranty Part: 03 Month(s)
-
Services: 03 Month(s)
|
